IZYLUM

A time-saving, versatile and high-performing street lighting solution

Description

IZYLUM is a range of robust yet compact outdoor LED luminaires, designed with a focus on easy installation and maintenance.
Based on Schréders proven track record in road and urban LED lighting, the IZYLUM luminaires benefit from numerous innovations to provide the ultimate experience for municipalities, utilities, contractors and citizens.
Available in various sizes with a LED count of 10 to 240 LEDs, IZYLUM provides a well-dimensioned, efficient outdoor lighting solution ranging for various low-height applications such as parks, bicycle paths or residential streets to main roads and boulevards.
This connected-ready luminaire offers a realistic platform for smart cities. Its’ lightweight optimised design minimises the carbon footprint at every stage of the product lifecycle. IZYLUM stands out as the best in class for a circular economy.

Characteristics

General Information

Recommanded installation height (m)
4.0 -
15.0

Electrical information

Electrical class
Nominal voltage
Power factor (at full load)
0.95
Surge protection (kV)
10
8
6
Control protocol(s)
Associated control system(s)
Sensor(s)

Performance

Luminaire output flux (lm)
600 -
35600
Power consumption (W)
7.2 -
280.0
Luminaire efficacy - up to (lm/W)
171

Optical information

Colour rendering index (CRI)
70
80
Upward Light Output Ratio (ULOR)
0%

Housing and finish

Housing
Aluminium
Optic
Protector
Tempered glass
Tightness level
Impact resistance

Operating conditions

Operating temperature range (Ta)
-40°C up to +55°C / -40°F up to 131°F with wind effect
Depending on the luminaire configuration. For more details, please contact us.

Dimensions and mounting

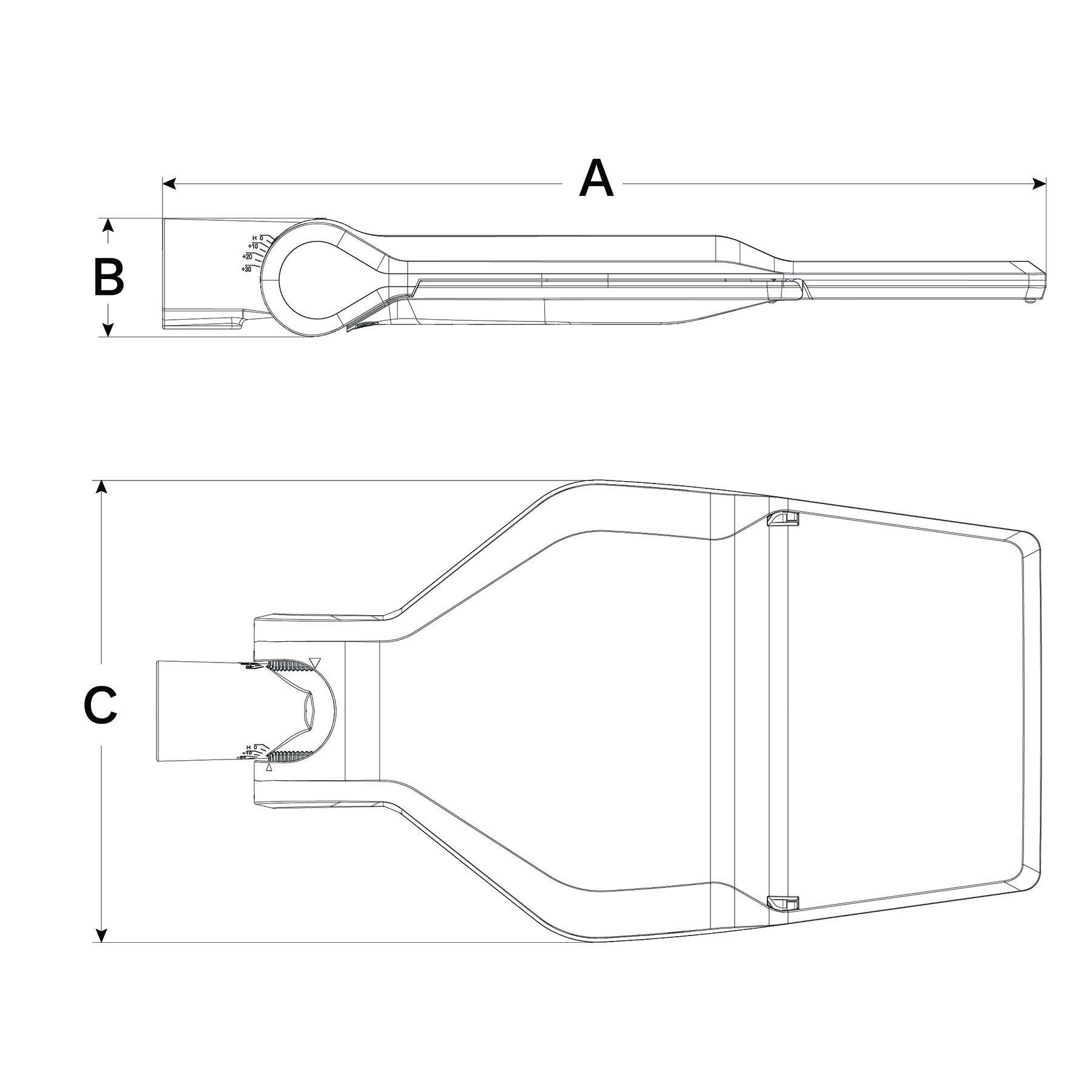

AxBxC (mm | inch)
IZYLUM 1 - 587x94x294 | 23.1x3.7x11.6
IZYLUM 2 - 604x94x352 | 23.8x3.7x13.9
IZYLUM 3 - 715x94x368 | 28.1x3.7x14.5
IZYLUM 4 - 873x94x390 | 34.4x3.7x15.4
IZYLUM 5 - 873x94x390 | 34.4x3.7x15.4
Weight (kg | lbs)
IZYLUM 1 - 4.9 | 10.8
IZYLUM 2 - 6.3 | 13.9
IZYLUM 3 - 7.0 | 15.4
IZYLUM 4 - 9.9 | 21.8
IZYLUM 5 - 10.3 | 22.7
Mounting possibilities
Side-entry slip-over – Ø48mm
Side-entry slip-over – Ø60mm
Post-top slip-over – Ø76mm
Post-top slip-over – Ø32mm
Post-top slip-over – Ø48mm
Side-entry slip-over – Ø32mm
Side-entry slip-over – Ø42mm
Post-top slip-over – Ø60mm
