TFLEX

The versatile, powerful, tunnel lighting platform

Description

TFLEX is a revolutionary, modular-based platform, designed to enhance the road tunnel lighting experience. This one single platform includes: luminaires, optical and power units, flexible mounting, smart cabling and control solutions. TFLEX offers a homogeneous solution that meets all tunnel lighting requirements.
This innovative solution provides an optimized and energy-efficient answer for the various typical tunnel zones from entry to exit.

Modular-based platform

TFLEX has been developed to answer all types of tunnel requirements: optical units (TFLEX MODULE) with remote gears (TFLEX DRIVE), complete assemblies consisting of LED engines and gears (TFLEX COMBI) and dedicated luminaires (TFLEX BASE)

Adapted to any tunnel geometry

TFLEX comes with a large variety of mounting options, orientable and swivelling, enabling mounting on walls and ceiling, in every type of tunnel geometry.

Enhanced lighting experience

Taking benefits from the latest photometrical technologies, TFLEX optical units come with a new series of customizable and orientable optics to meet Tunnel lighting specificitfications.

Plug and play

TFLEX uses pre-assembled cables and connectors which drastically ease and reduce the mounting time. The access for maintenance activities is completely tool less for maximized time savings.

Latest tunnel technologies

Integrating the latest remote Control technologies, TFLEX is compatible with the Advanced Tunnel Solution, designed to adapt the lighting level according to the corresponding conditions in and outside of the tunnel. To monitor power consumption and report potential failure to maintenance, for maximized flexibility, safety and customer experience.

A total package for any tunnel project

TFLEX is an all-in-one platform which combines photometrical, control, mounting and cabling solutions to fit into every tunnel geometry. The combination of customizable optical units, mounting options, and the latest tunnel technologies (Advanced Tunnel System) makes TFLEX the most flexible and complete tunnel solution. This innovative platform benefits from in-depth studies, allowing Schreder to provide the customer with a complete and enhanced tunnel lighting experience.

Characteristics

Electrical information

Electrical class
Nominal voltage
Control protocol(s)
Associated control system(s)

Performance

Luminaire output flux (lm)
3300 -
73700
Power consumption (W)
22.9 -
524.0
Luminaire efficacy - up to (lm/W)
168

Optical information

LED colour temperature
Colour rendering index (CRI)
70

Housing and finish

Tightness level
Impact resistance

Lifetime

All configurations

Operating conditions

Operating temperature range (Ta)
-40 °C to +55 °C / -40 ° F to 131 °F
Depending on the luminaire configuration. For more details, please contact us.

Dimensions and mounting

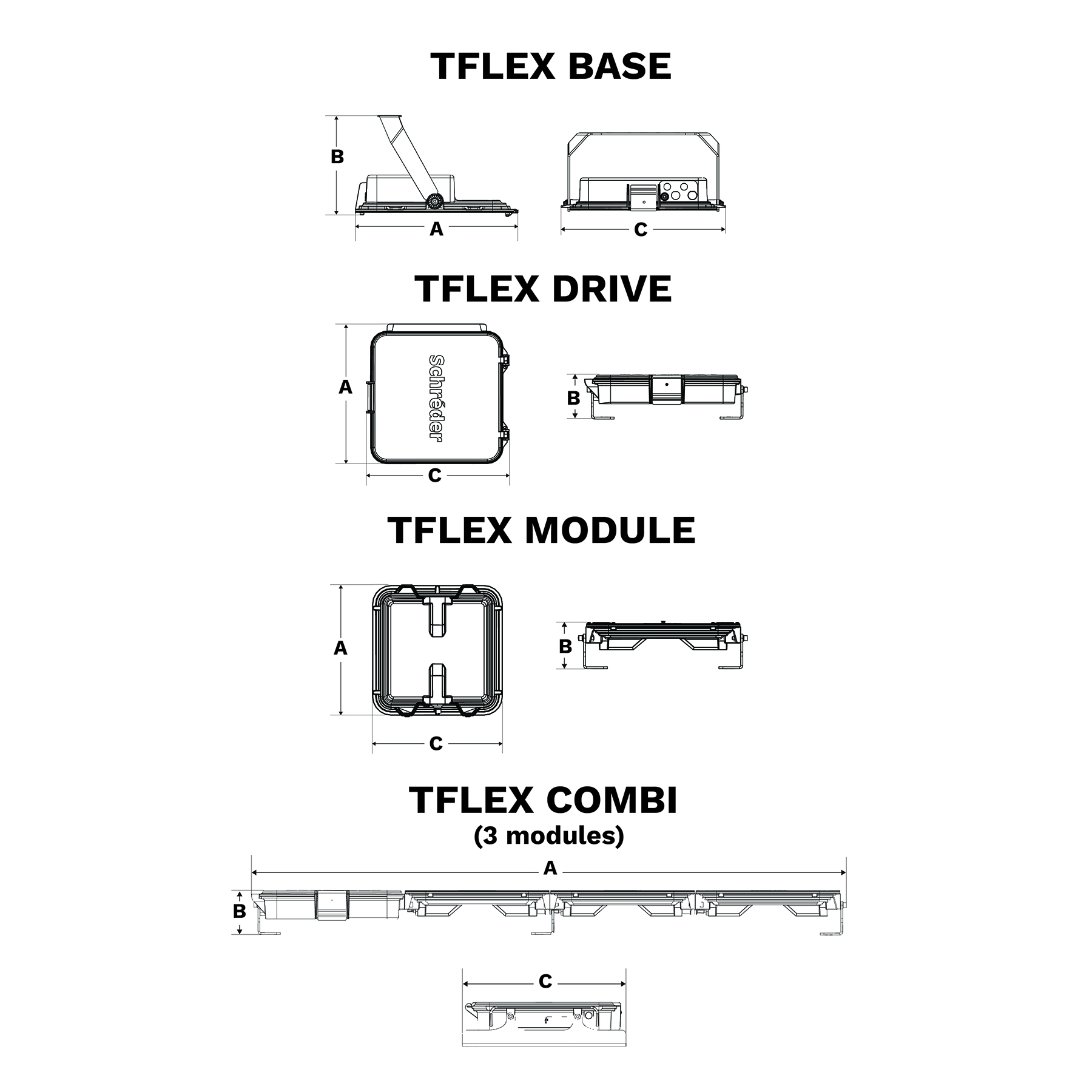

AxBxC (mm | inch)
TFLEX BASE - 415x244x488 | 16.3x9.6x19.2
TFLEX MODULE 1 - 389x69x385 | 15.3x2.7x15.2
TFLEX MODULE 2 - 788x69x385 | 31.0x2.7x15.2
TFLEX MODULE 3 - 1177x69x385 | 46.3x2.7x15.2
TFLEX COMBI 1 - 786x117x440 | 30.9x4.6x17.3
TFLEX COMBI 2 - 1175x117x440 | 46.3x4.6x17.3
TFLEX COMBI 3 - 1564x117x440 | 61.6x4.6x17.3
Weight (kg | lbs)
TFLEX BASE - 11.0 | 24.2
TFLEX MODULE 1 - 8.0 | 17.6
TFLEX MODULE 2 - 15.0 | 33.0
TFLEX MODULE 3 - 23.0 | 50.6
TFLEX COMBI 1 - 16.0 | 35.2
TFLEX COMBI 2 - 23.0 | 50.6
TFLEX COMBI 3 - 32.0 | 70.4
Mounting possibilities
Suspended mounting
Bracket enabling adjustable inclination
Surface mounting

Control systems

TFLEX control options

TFLEX has the following dimming / control options:
• Remote management
• DALI or 1-10V network protocols
• Custom dimming profile
• Bi-power

TFLEX is compatible with the Advanced Tunnel System (ATS) from Schréder. This smart control solution is probably the most powerful on the market. It has been designed to provide auto-commissioning, seamlessly adapt the lighting level according to applicable standards and conditions in the tunnel, to monitor the power consumption and to report any failures.

Installation and Maintenance

Flexible installation

The TFLEX platform is available with a large variety of mounting options. TFLEX BASE can be equipped with its own adjustable bracket, available in two sizes, while TFLEX COMBI offers 6 types of bracket, fixed, adjustable or swiveling, in stainless steel or galvanized steel. This mounting modularity allows TFLEX to meet all type of tunnel geometries.

Easy access for maintenance

The access to TFLEX BASE and TFLEX DRIVE is tool less, using a latch. The whole platform shares the same power components to ease repair activities. The electrical connection is made via pre-assembled cables and connectors to drastically reduce the installation time and avoid any wiring issues.

Accessories and versions

TFLEX BASE threaded rod fixation

Four slots attached to the housing of the luminaire provide the possibility for a threaded rod fixation.

TFLEX BASE adjustable bracket

An adjustable bracket is available in two sizes allowing TFLEX BASE to be positioned and oriented on walls and ceilings to perfectly fit a large type of tunnel.

Fixed brackets – TFLEX COMBI, TFLEX DRIVE and TFLEX MODULE

The fixed brackets allow standard mounting on flat surfaces, whether it is on walls or ceilings.

Suspended and wall pull-out brackets – TFLEX COMBI and TFLEX MODULE

The pull-out fixation brackets facilitate the installation on walls and ceilings while the fixation consists of eliminating any luminaire weight constraints. The luminaire inclination can be easily adjusted to preset values varying from -20 to +20°.

Suspended and wall adjustable brackets – TFLEX COMBI and TFLEX MODULE

The adjustable fixation brackets provide a flexible mounting for both walls and ceilings as they are capable of adapting to any tunnel configuration. The adjustable brackets enable slight shifts to the left or to the right in combination with a gradual inclination to deliver the ideal lighting for your tunnel.
