Classic urban luminaire with a modern twist for cost-effective lighting
Designed to light various urban landscapes such as residential areas, parks, squares, bicycle paths and urban historical centres, the Friza outdoor luminaire combines a timeless design with the energy efficiency of LED technology.
The name Friza refers to Friesland, a Dutch province and one of the many regions where the original conical ‘Kegel’ street light pole remains very popular. This classical shape is now refreshed to provide an aesthetic continuity while generating massive energy savings.
Friza ensures photometric performance and comfort to offer safety and well-being in the public space. The robust design of the Friza luminaire guarantees a long-lasting performance.
Thanks to its various lumen packages and its wide range of optics, the FRIZA outdoor luminaire offers a lighting solution suited to all typical low-height urban applications: streets, squares, parks, bike paths and car parks.
The FRIZA street luminaire is supplied pre-cabled so it does not need to be opened during installation. It is designed for a quick and easy mounting on a Ø60mm spigot by tightening two screws.
Thanks to a high tightness level that protects the internal components, the FRIZA urban luminaire maintains the performance of its state-of-the-art LED technology over time. A high resistance to impacts makes it suitable for harsh urban environments.
With two types of protector (clear or striated), combined with an internal diffusor, the FRIZA outdoor LED lighting solution ensures photometric performance and comfort (low glare) to offer safety and well-being in public spaces.
The FRIZA outdoor luminaire offers the best savings to investment ratio in ambiance lighting thanks to its affordable pricing and high performance. This efficiency enables a lower payback time for a new scheme and enables towns and cities to benefit from the savings for many years afterwards.
As energy costs will keep increasing, the best energy is energy that is not used.
Investing in the FRIZA optimises the Total Cost of Ownership of your lighting installation.
As a founding member of the Zhaga consortium, Schréder has participated in the creation of the Zhaga-D4i certification program and the initiative of this group to standardise an interoperable ecosystem. The D4i specifications take the best of the standard DALI2 protocol and adapt it to an intra-luminaire environment.
As a Zhaga-D4i certified luminaire, FRIZA complies with all the criteria including mechanical fit, digital communication, data reporting and power requirements for a luminaire, ensuring plug-and-play interoperability of luminaires and peripherals such as connectivity nodes.
Recommanded installation height (m)
Power factor (at full load)
Surge protection (kV)
Luminaire output flux (lm)
Power consumption (W)
Luminaire efficacy - up to (lm/W)
LED colour temperature
Colour rendering index (CRI)
Upward Light Output Ratio (ULOR)
Housing and finish

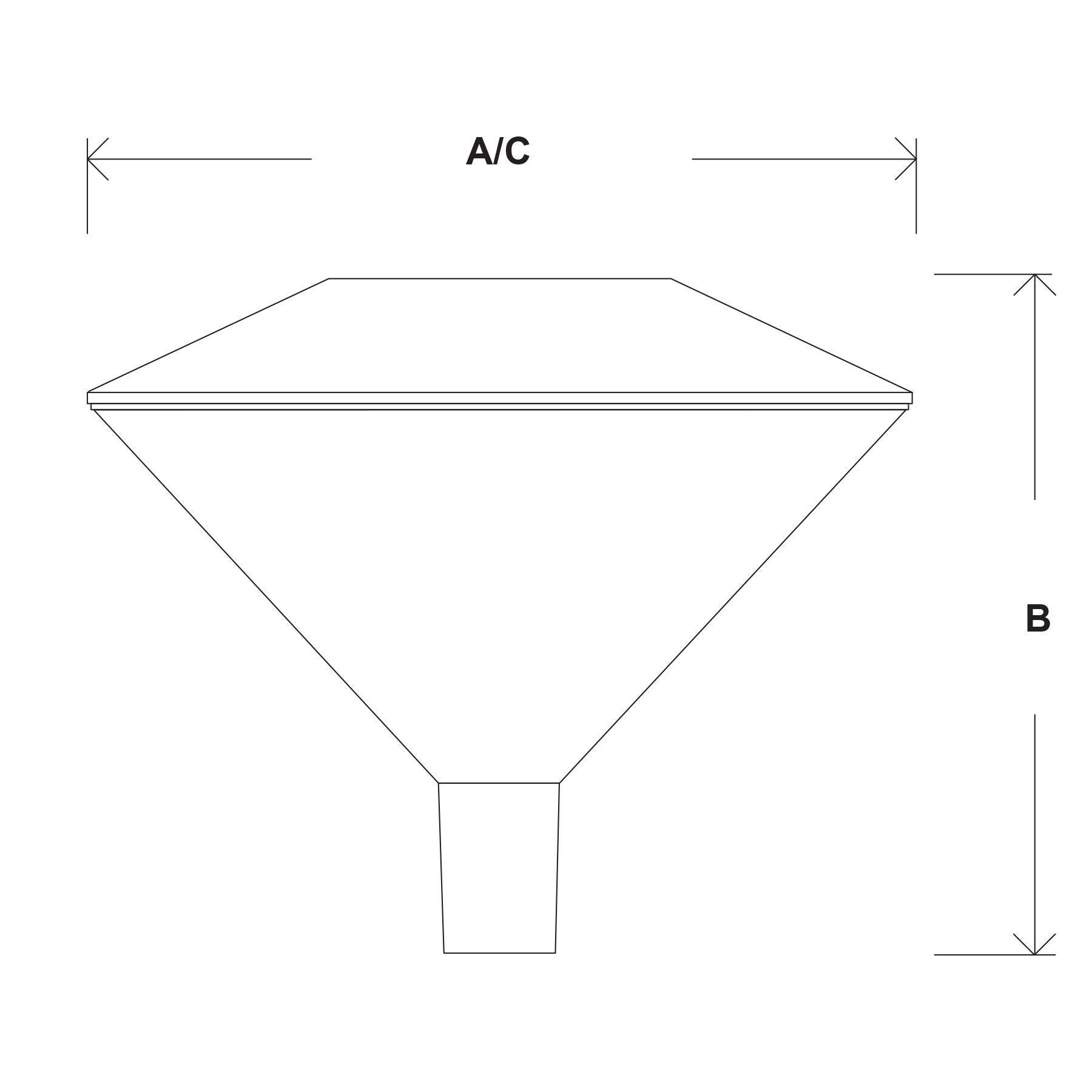

Dimensions and mounting
AxBxC (mm | inch)
Weight (kg | lbs)
The FRIZA street lighting poles offer the following dimming/control options:
• Custom dimming profile
• Remote management
As an option, this luminaire can be equipped with standard 7-pins NEMA or Zhaga sockets, enabling easy access to the digital era of lighting.
Installation and Maintenance
The FRIZA LED luminaire offers slip-over mounting onto Ø60mm spigots by tightening 2 screws. To facilitate the installation, FRIZA is supplied pre-cabled.
The canopy can be opened for maintenance by unscrewing 4 captive screws. An integrated hinge retains the canopy and prevents it from falling down when opened. It gives direct access to the gear plate.
